Neptun SCS1 – Comfortable Sluice For Wet Cleaning Of Soles

Sole Cleaning

Wet Cleaning / Disinfection

Description

The Sole Cleaning System, That Fits Your Needs

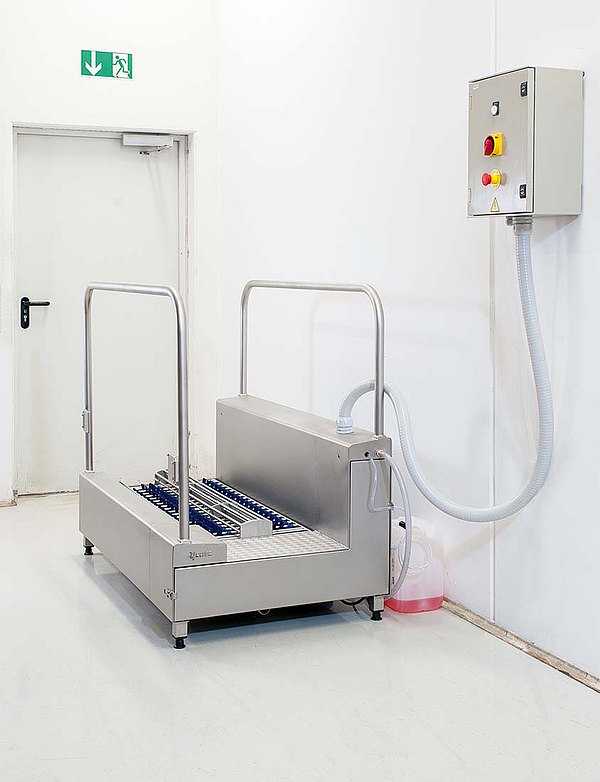

The Neptun SCS1 (Sole Cleaning System 1), designed as a sluice solution, generates highest efficiency in smallest space and simply and effectively cleans very dirty soles. Owing to its compact dimensions, the personnel sluice fits in both small and large passages and due to its length, cannot be by-passed, in no way. The system is equipped with two light barriers, one at the entrance and the other at the exit. After crossing the light barrier, the nylon brushes automatically start rotating and water as well as medium are supplied. The runtime is individually adjustable.





For cleaning purposes or removal of the long revolving brushes, the passageway can be simply folded up. The control cabinet is separately mounted on a wall, and thus, located outside of the wet and dirty area.

The control unit is mounted separately on a wall and is thus outside the wet and dirty area.




Robust nylon brushes


Thorough wet cleaning


Separate detergent supply


Person recognition by light barrier



























Advantages of Neptun SCS1:

  • Sluice solutions with forced guidance
  • For very dirty soles
  • Robust nylon brushes
  • Start by light barrier
  • Made of stainless steel completely
  •

Technical Data

Technical Overview

Neptun SCS1

Dimensions (W x L x H) 1420 x 840 x 1170 mm
Weight 180 kg
Design V2A 1.4301 (X5CrNi18-10), AISI 304
Brushes 2 horizontal brushes (sole cleaning)
Water pressure recommended 3 bar
Water temperature 5 – 50 °C
Water flow rate 7 l/min
Mains connection 400 Volt, 0,8 kW, 50 Hz*
Control Switch cabinet for wall mounting
IP protection class IP 55

*Special motor on request
