Neptun SC1 – Sole Cleaner

Sole Cleaning

Wet Cleaning / Disinfection

Upper Shoe Cleaning



1 Sole Cleaner, 3 Features

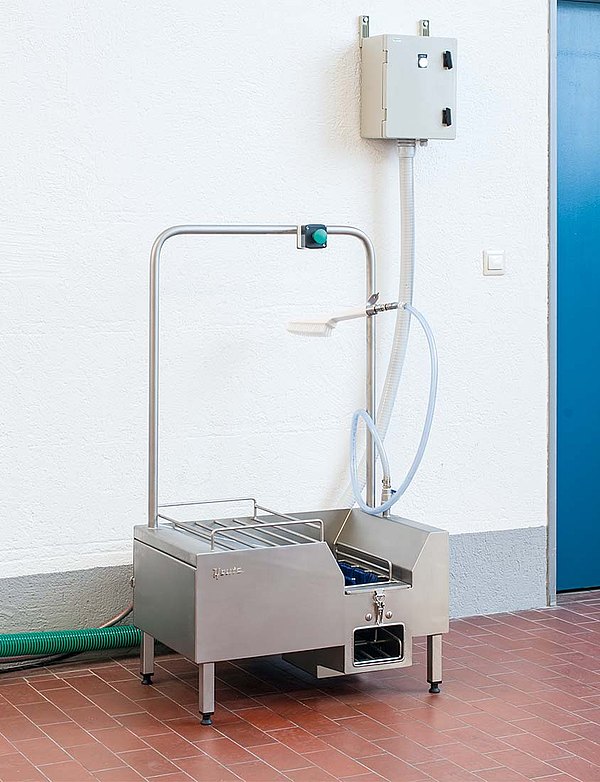

The sole cleaning machine Neptun SC1 (Sole Cleaner 1) combines three important functions in a compact space. The standard feature enables the wet cleaning of the soles of Clogs, work shoes and boots. Dirt on top of the shoes can easily be washed off, thanks to the practical EasyClean function – a separate cleaning opening below the roller brush.



The machine is to be preferred when boot cleaning is an exception. Bootlegs or plastic pants can be easily and effectively cleaned by means of the integrated handbrush. For this purpose, the handbrush is equipped with an individually controllable water inlet.
To improve hygienic results, disinfectants or detergents can be fed. The connected supply tube can be individually adjusted to control the quantity of fed cleaning detergent. A stable and easy-to-reach platform is used to store the detergent container.

The Neptun SC1 is quickly cleaned without any additional tools. The switch cabinet is to be arranged on the wall behind the equipment. In this way, the cabinet is located outside of the wet and dirt areas.

The control cabinet can be installed on the wall, behind the machine. Thereby it is outside of the wet and dirty area around the machine.



Separate cleaning of sole and upper shoe


Storage grate for detergents


Quick-action bow sluice for easy cleaning


Hand brush cleaning














Advantages of Neptun SC1:

  • For very dirty soles
  • Robust nylon brushes
  • EasyClean function
  • Made of stainless steel completely
  • Fast and easy cleaning of the machine


Technical Data


Technical Overview

Neptun SC1

Dimensions (W x L x H) 760 x 640 x 1220 mm
Weight 50 kg
Design V2A 1.4301 (X5CrNi18-10), AISI 304
Brushes 1 horizontal brush (sole and upper material)
Water pressure recommended 3 bar
Water temperature 5 – 50 °C
Water flow rate 4 l/min
Mains connection 400 Volt, 0,18 kW, 50 Hz*
Control Switch cabinet for wall mounting
IP protection class IP 55

*Special motor on request
